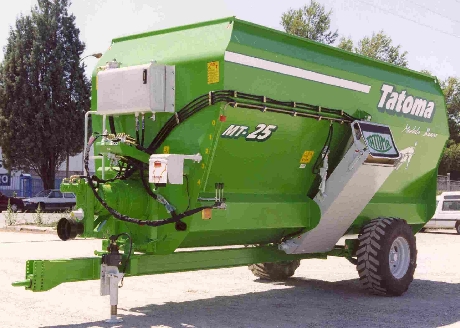

Single Auger Horizontal Mixer Bravo Model MT-25

Single Auger Horizontal Mixer Bravo Model MT-25
Gallery:
Enlarge image
Size of the text
Reduce text size Restore text size Increase text size

Our trailed horizontal mixer has a mixing and chopping system that has evolved over the years to achieve optimum performance.

Operating basically on a central axis on which two hollow spirals are mounted which move from the ends to the centre of the axis. This mixing system ensures product movement both lengthwise and crosswise, while avoiding excessive compression of the ingredients, obtaining a  fluffy and homogenous mix.

The two beaters mounted on the  interior wall of the tub that perform a circular motion, ensure better product flow.

This system ensures greater homogeneity of the mixture,  more regular chopping and reduced mixing time. In turn, the working concept of the machine reduces the risk of breakage due to the absence of mechanical moving parts and traction, as the auger is powered by direct transmission from the tractor.

Other advantages:

*  Long working life

*  Simple working concept

*  Reduced height

*  Minimum power requirement

*  Low maintenance costs

The main advantage of our horizontal mixer lies in getting a good mixture with any amount of product, without the need for the minimum filling levels.



  MT-25
CAPACITY m³ 25
POWER CV 150
PNEUMATICS 18R22.5
A mm 7600
B mm 5720
C mm 2680
D mm 2481
E mm 3320
F mm 385
TARE Kg 6200



DESCRIPTION

MT-25

Gear

2500Kg

PTO 540 r.p.m.

Auger 10 rev.

Inverter Entry

Double

No of beaters

4

No of load cells

4



Mixing  system with a single horizontal auger with bolted blades.

Beater system in series on wall opposite the discharge,  for the movement of the product.

Driven by a planetary reduction oil bath lubricated gear shaft.

Highly robust Machine, high quality materials, minimal maintenance.

Includes:

*  Hydraulic footstand

*  Manual brake

* Two control with wires ( manual beater control)

*  Steps

*  Programmable weighscale (15 rations x 15 ingredients)

*  Full hydraulic installation.

*  930 mm discharge belt in carbon steel

Tub:

*  Stainless steel  bottom

Discharge:

*  Change belt to opposite side

*  Belt flow regulator

*  Hydraulic elevation belt

*  Belt extension

*  Chain, Bottom discharge and crossbars in stainless steel

*  Double discharge

Brake:

*  Manual brake

*  Hydraulic brake

*  Manual and hydraulic  brake

*  Pneumatic and manual brake

Controls:

*  Solenoid valve control

*  Radio control (wireless)

Footstand:

*  Hydraulic footstand with hand pump

*  Mechanical footstand

Wheels:

*  Change wheels (different models)

Suspension:

*  Special chassis with springs

Others:

*  Bale kit

*  Battery kit

*  Lighting installation

*  CV PTO

*  Double input inverter for 7 10 and 13 mt (som)

*  Magnetic plate 750x220

*  Fenders

*  Change of curved to straight shaft

*  Add beater

*  Working lights
