Horizontal mixer with silage cutter Bravo Model MT-16-D and MT-20-D

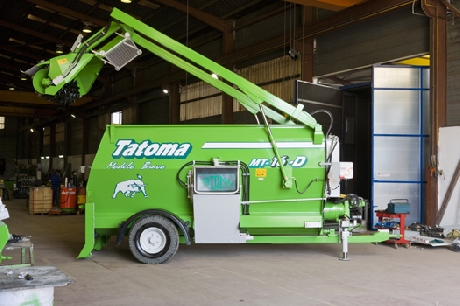

Horizontal mixer with silage cutter Bravo Model MT-16-D
Gallery:
  • sinfin horizontal
Enlarge image
Size of the text
Reduce text size Restore text size Increase text size

Our trailed horizontal mixer with silage cutter has a mixing and chopping system and a cutting unit that have evolved over the years to achieve optimum performance.

Operating basically on a central axis on which two hollow spirals are mounted which move from the ends to the centre of the axis. This mixing system ensures product movement both lengthwise and crosswise, while avoiding excessive compression of the ingredients, obtaining a  fluffy and homogenous mix.

The two beaters mounted on the  interior wall of the tub that perform a circular motion, ensure better product flow.

The units consists of a large and effective milling cutter that incorporates a safety system against overpressure and a tailgate for easy loading.

This system ensures greater homogeneity of the mixture,  more regular chopping and reduced mixing time. In turn, the working concept of the machine reduces the risk of breakage due to the absence of mechanical moving parts and traction, as the auger is powered by direct transmission from the tractor.

Other advantages:

*  Long working life

*  Simple work concept

*  Reduced height

*  Low maintenance cost


  MT16D MT20D
CAPACITY m³ 16 20
POWER CV 120 150
PNEUMATICS 15R-22.5 15R-22.5
F mm 7700 8000
G mm 4300 4300
H mm 3000 3150
TARE Kg 6300 6850



DESCRIPTION

MTD-16

MTD-20

Gears

2300 Kg.

2400Kg.

PTO shaft 540 r.p.m.

Auger 15 rev.

Auger 15 rev.

Entrada a inversor

Double

Double

No of beaters

3

3

No of load cells

4

4



Weighing  system with a single horizontal auger with bolted blades.

Beater system in seriess on wall opposite the discharge,  for the movement of the product.

Driven by a planetary reduction oil bath lubricated gear shaft.

Highly robust Machine, high quality materials, minimal maintenance.

Includes:

*  Hydraulic footstand

*  Manual brake

*  Two control with wires ( manual beater control)

*  Steps

*  Programmable weighscale (15 rations x 15 ingredients)

*  Full hydraulic installation.

*  Discharge conveyor belt 930 mm in carbon steel

The silage cutter kit consists of:

*  Cutter drum diameter 690 mm and length 1500 mm

*  Hydraulic motor

*  Pressure regulator to control cutter lowering speed

*  Two cylinders to lower the cutter arms

*  Rear tailgate

*  Wire control with two separate blocks  (manually operated beaters)

Tub:

*  Stainless steel  bottom

Discharge:

*  Change belt to opposite side

*  Belt flow regulator

*  Hydraulic elevation belt

*  Belt extension

*  Chain, Bottom discharge and crossbars in stainless steel

*  Double discharge

Brake:

*  Manual brake

*  Hydraulic brake

*  Manual and hydraulic  brake

*  Pneumatic and manual brake

Controls:

*  Solenoid valve control

*  Radio control (wireless)

Footstand:

*  Hydraulic footstand with hand pump

*  Mechanical footstand

Wheels:

*  Change wheels (different models)

Suspension:

*  Special chassis with springs

Others:

*  Bale kit

*  Battery kit

*  Lighting installation

*  CV PTO

*  Double input inverter for 7 10 and 13 mt (som)

*  Magnetic plate 750x220

*  Fenders

*  Change of curved to straight shaft

*  Add beater

*  Working lights
