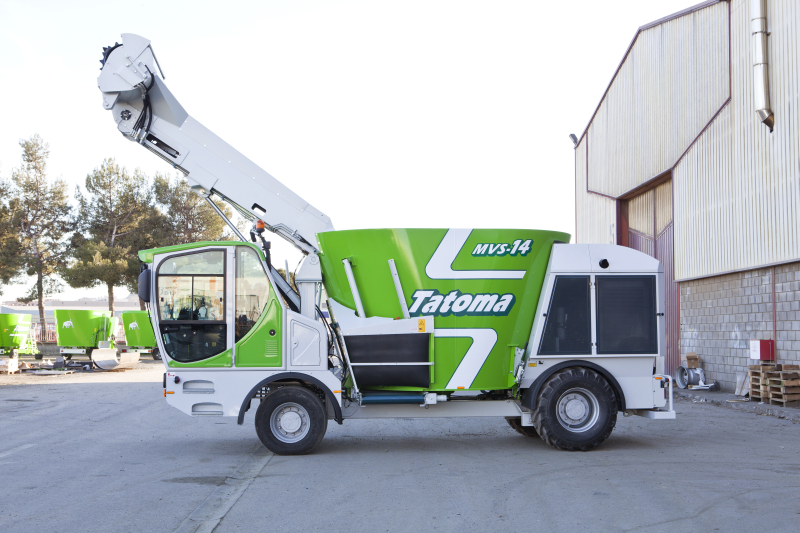

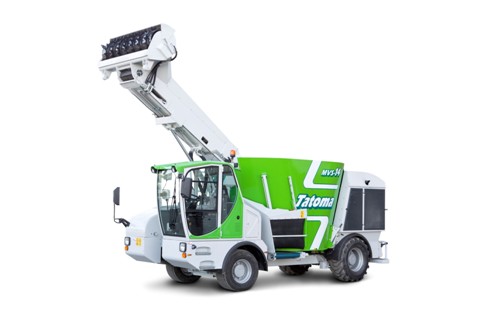

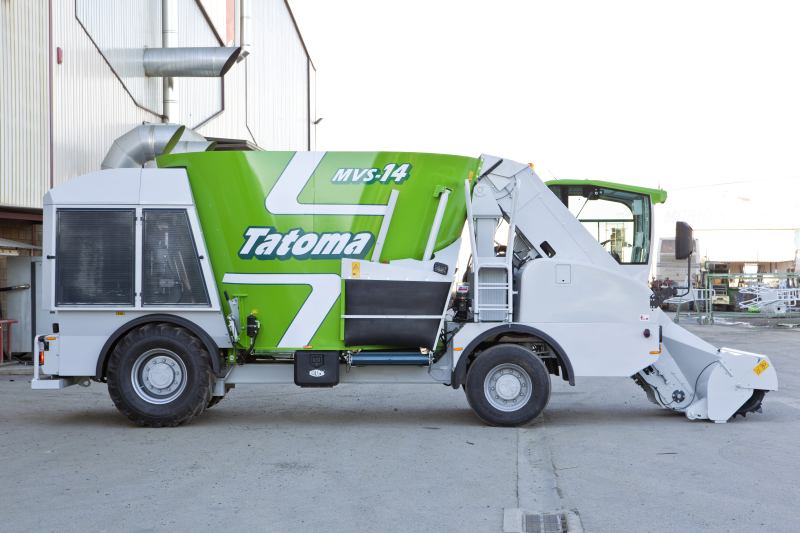

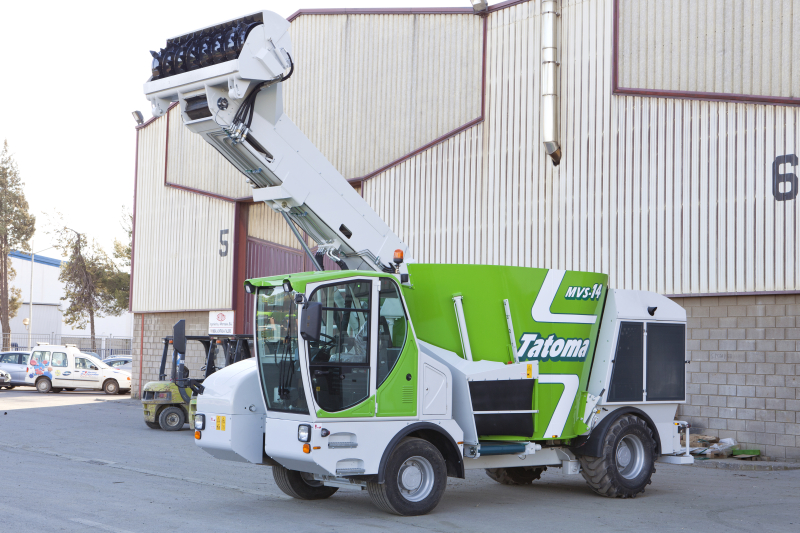

Vertical self-propelled mixer MVS-14 ROUTER MIX (up to 40Km/h)
The single self-propelled vertical mixer adds the advantages of a trailed vertical mixing the fact that it is completely autonomous, doing away with the need for a tractor for moving or loading.
In the same way as the trailed vertical mixers, operation is based on a tapered tub and a vertical conical auger that allows any type of product to be chopped or mixed.
Mixing is carried out by the effect of the multiple serrated blades of the auger, which cut the product while it moves up and then falls back down thanks to gravity.

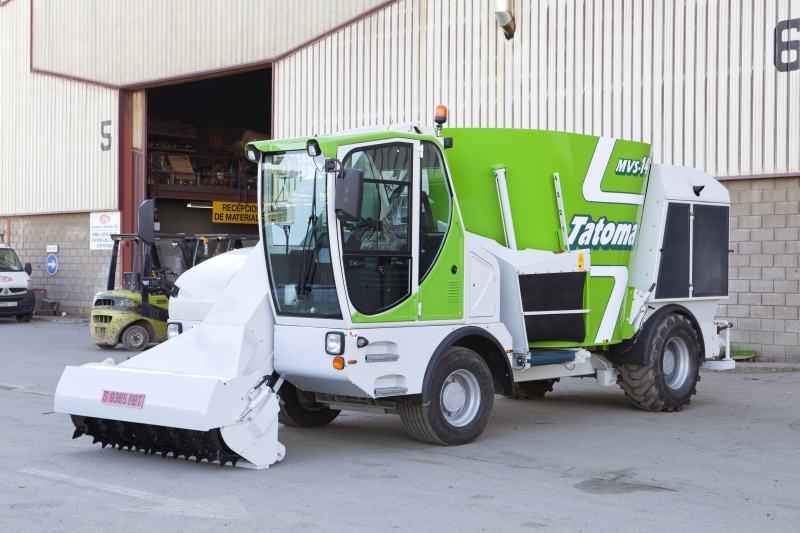

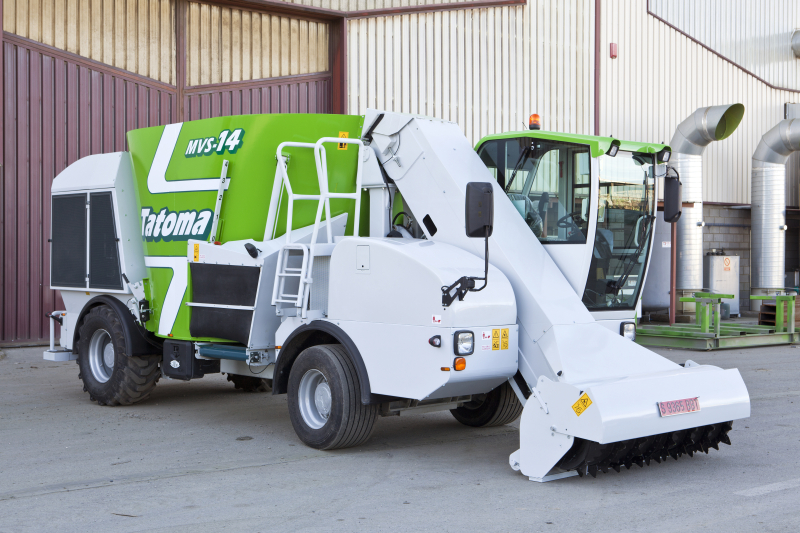

The machine has a frontal cutting mechanism incorporated. This cutter, by means of the transporter belt enables the products the mix is made up of (fibre, forage, corn silage) to be loaded inside the tub.
The engine is located at the front, thus achieving a very compact machine, which allows great manoeuvrability and is ideal for installations with difficult access.
This model, thanks to its characteristics, can have an optional 4-wheel drive, which further increases its adaptability to the environment where you work.
|
CODE |
MODEL |
VOLUME |
SPEED |
POWER |
|
9112-1 |
MVS-12 |
12 m³ |
40 Km/h |
238 CV |
|
9112-2 |
MVS-12 |
12 m³ |
25 Km/h |
175 CV |
|
9112-3 |
MVS-12 |
12 m³ |
15 Km/h |
175 CV |
|
9114-1 |
MVS-14 |
14 m³ |
40 Km/h |
238 CV |
|
9114-2 |
MVS-14 |
14 m³ |
25 Km/h |
175 CV |
|
9114-3 |
MVS-14 |
14 m³ |
15 Km/h |
175 CV |
TECHNICAL SPECIFICATIONS SINGLE-AUGER VERTICAL SELF-PROPELLED MACHINE
|
|
|
MVS12 RM |
MVS14 RM |
|
Overall lenght (mm) |
|
7,800 |
7,800 |
|
Maximum cutting height (mm) |
|
5,100 |
5,100 |
|
Outer tub width (mm) |
A |
2,500 |
2,500 |
|
Overall height (mm) |
B |
2,890 |
2,950 |
|
Discharge belt width (mm) |
C |
2,550 |
2,5500 |
|
Volume (m3) |
|
12 |
14 |
Others advantages:
* Thick, resistant single auger vertical mixing system with interchangeable blades.
* 238 CV. engine situated on the front right part (IVECO).
* Hydraulic circuit behind the cab.
* Front sliding discharge belt in stainless steel.
* Loading rubber conveyor belt.
* Rear axle drive.
* Emergency and parking brake on rear axle.
* Service brake on both axles.
* Travel speed 0-40 km / h (optional 15 and 25 km / h).
* Front steering axle enabling a 40 ° turning circle.
* Rear Leaf spring and front axle hydraulic suspension.
* Medium duty variable flow pumps for moving and mixing medium series.
* Medium duty HP piston mixer motor (350 bar).
* Auger in ST 52 steel.
* 2,000 mm long cutter with 100 CV motor.
* Folding cab door.
* Seat with pneumatic suspension.
* Programmable PERIN M-1500 weighscale (30 recipe x 30 ingredients).
* Front wheels 435/50 R19.5 and rear wheels 18 R 22.5 -281.
* Cutter lowering adjustment electrically driven from the cabin.
* Pressure switch to adjust working pressure of the cutter.
* Mixer work pressure gauge.
* Oil temperature indicator of mixer gear.
* Hydraulic oil temperature indicator.
* Hydraulic oil level low warning.
* Breakdown lights.
* Extinguisher in thermoplastic box.
* Tool box with brake unblocking tool.
* Mudflaps.
* Ready for registration and air conditioning.
* Rear right and left working light.
* Four-Step Ladder with platform.
* Radio-CD.
* Fixed magnet on the discharge belt.
* Heating and air con.
* Rear mirrors with electrical resistance.

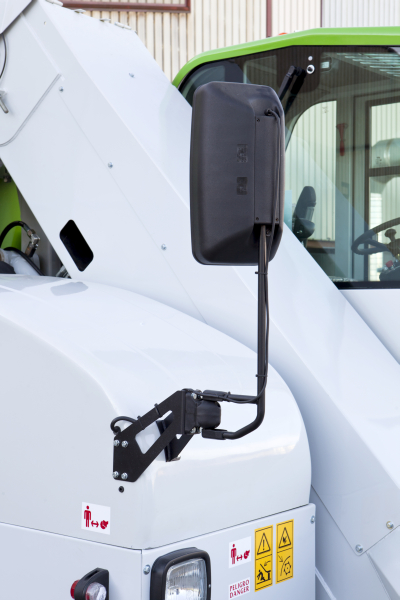

* Electric rear mirrors.
* Working light.
* Accessories and documentation for registration.
* Sweeper.
* Cutter support.
* Hydrogen accumulation suspension.
* Cutter length increase.
* Video camera.
* Service brake pedal on two axis.
* Reversible fan.

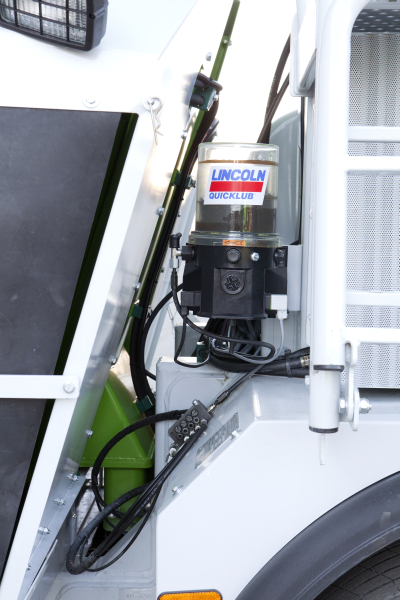

* Centralised lubrication.
* Differential locking.
* Increase motor power.
* Stainless steel cutter.
* Parabolic spring-leaf suspension.
* Front pneumatic suspension.
* Speed 0-25 Km/h.
* Speed 0-40 Km/h.
* 2-way axis.
* 4-wheel drive.
* Second side door.
* Additional belt with hydraulic control.
* Moveable sidebelt.
* Rear discharge belt both sides.
