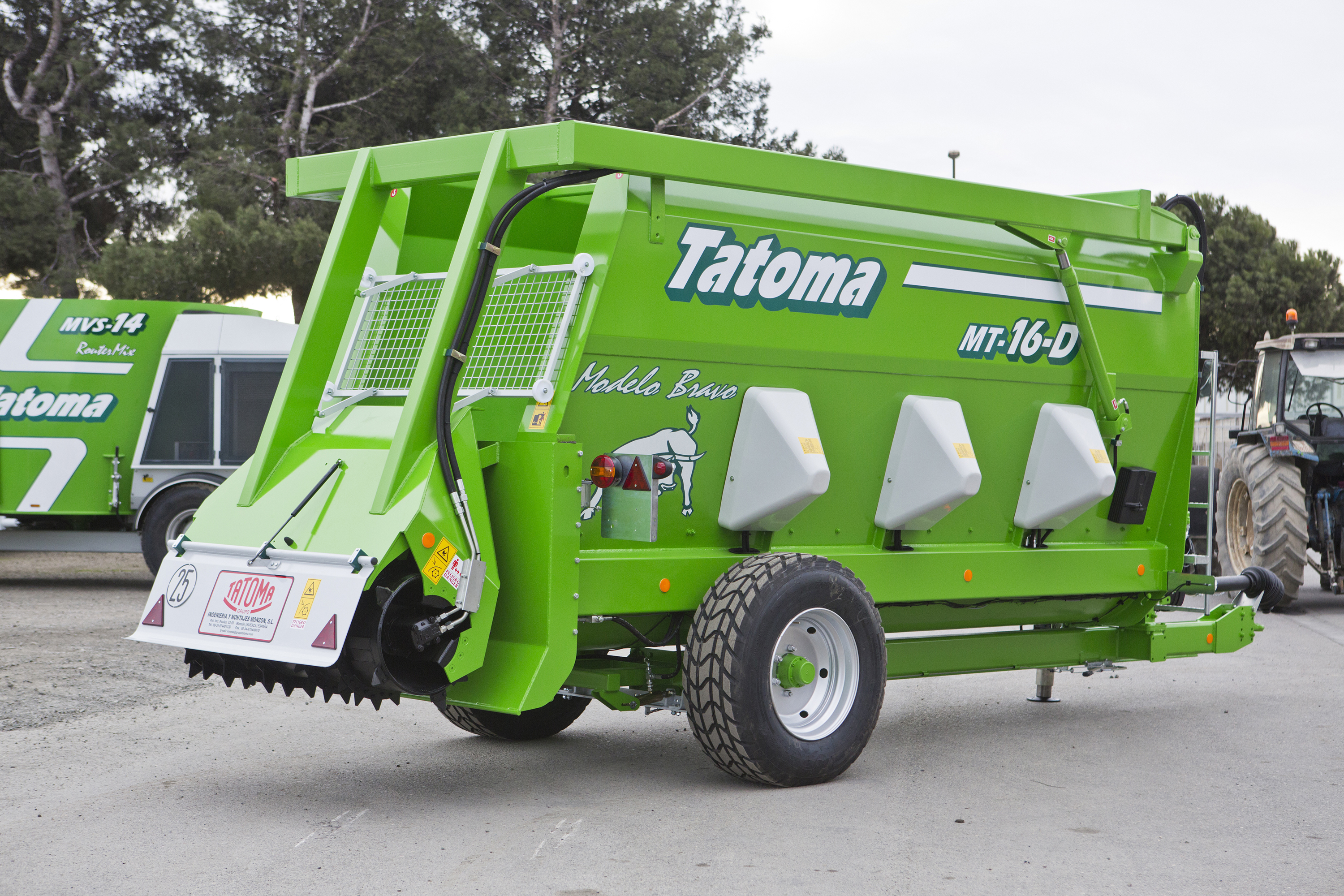

Horizontal mixer with silage cutter  Bravo Model MT-7-D MT-10-D, MT-13-D  and MT-16-D

horizontal dragged mixer
horizontal dragged mixer
Gallery:

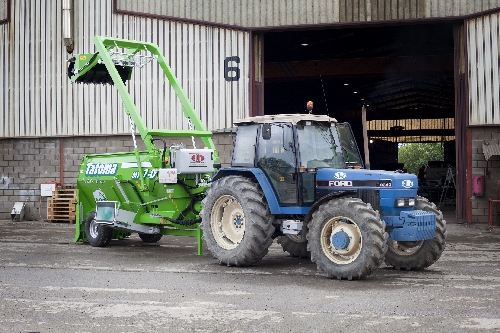

  • horizontal dragged mixer

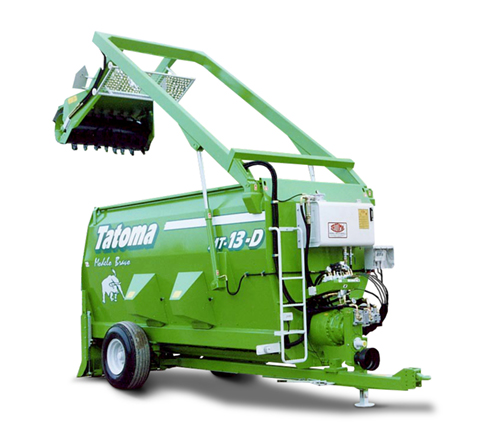

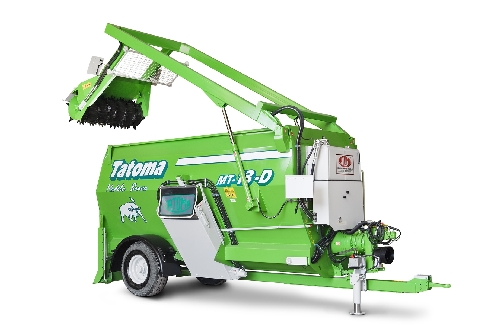

  • Horizontal mixer with silage cutter Bravo Model MT-13-D
  • characteristics

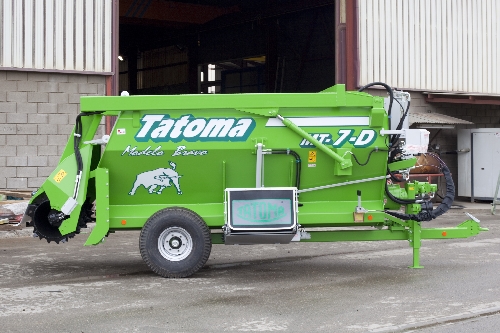

  • Mixer Bravo Model MT

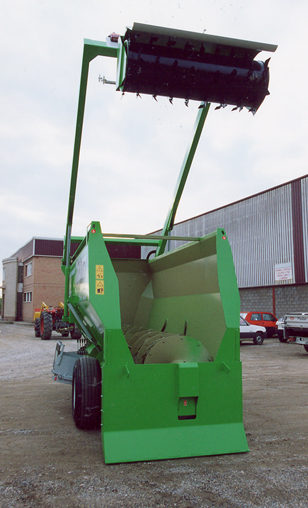

  • horizontal dragged mixer detail
Enlarge image
Size of the text
Reduce text size Restore text size Increase text size

Our trailed horizontal mixer with silage cutter has a mixing and chopping system and a cutting unit that have evolved over the years to achieve optimum performance.

Operating basically on a central axis on which two hollow spirals are mounted which move from the ends to the centre of the axis. This mixing system ensures product movement both lengthwise and crosswise, while avoiding excessive compression of the ingredients, obtaining a  fluffy and homogenous mix.

The two beaters mounted on the  interior wall of the tub that perform a circular motion, ensure better product flow.

The units consists of a large and effective milling cutter that incorporates a safety system against overpressure and a tailgate for easy loading.

This system ensures greater homogeneity of the mixture,  more regular chopping and reduced mixing time. In turn, the working concept of the machine reduces the risk of breakage due to the absence of mechanical moving parts and traction, as the auger is powered by direct transmission from the tractor.

Other advantages:

*  Long life

*  Simple operation concept

*  Reduced height

*  Low maintenance cost








Capacity m³

Power CV

PNeumatics

A mm.

B mm.

C mm.

D mm.

E mm.

F mm.

G mm.

TARE Kg.

MT-7D

7

60

12,5/80 -15,3

6200

4250

1950

1932

2400

315

4000

4000

MT-10D

10

75

12,5/80 -15,3

6750

4600

2150

2032

2600

215

4000

4800

MT-13D

13

100

13,5/80 -15,3

7300

4800

2271

2062

2800

245

4000

5000

MT-16D

16

120

385/65 R 22,5

7700

5300

2350

2281

3000

340

4300

6300


DESCRIPTION

MT7D

MT10D

MT13D

Gear

1000 Kg.

1000 Kg

1380Kg.

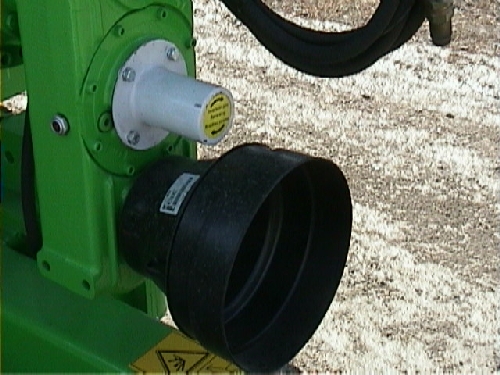

PTO shaft 540 r.p.m.

Auger 15 rev.

Auger 15 rev.

Auger 15 rev.

Input Entry

Simple

Simple

Simple

No of beaters

2

2

2

No of weight cells

3

3

3



Single horizontal auger bolted blades.

Beater system in seriess on wall opposite the discharge for product movement.

Driven by a planetary reduction oil bath lubricated gear shaft.

Highly robust Machine, high quality materials, minimal maintenance.

Includes:

*  Hydraulic foot stand

*  Manual brake

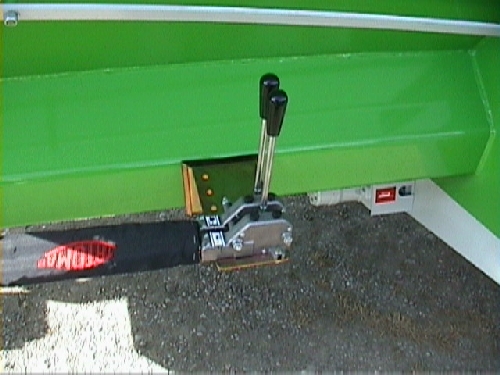

*  Two controls with wires (manual beater control)

*  Steps

*  Programmable weighscale (15 rations x 15 ingredients)

*  Full hydraulic installation

*  930 mm carbon steel discharge conveyor

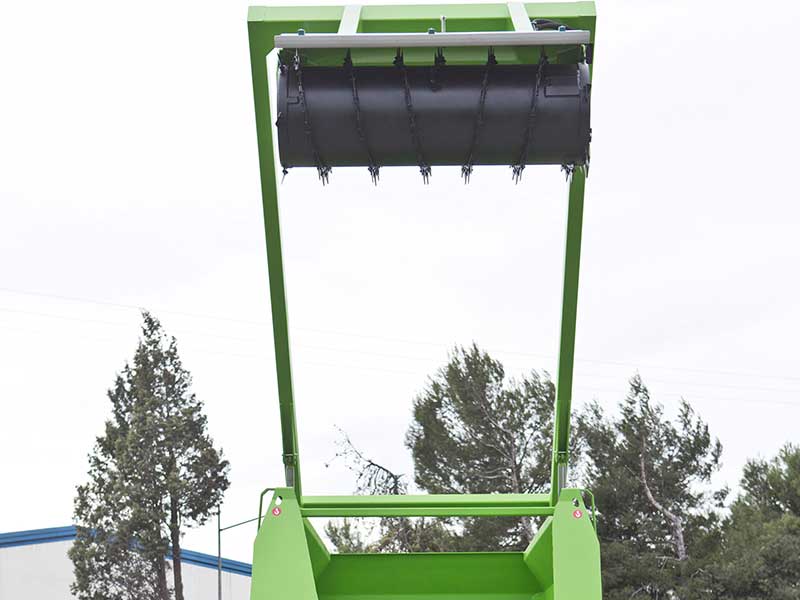

The silage cutter kit consists of:

*  Cutter drum 690 mm  and length 1500 mm

*  Hydraulic motor

*  Pressure regulator to control the speed of descent of the cutter.

*  Two cylinders to lower the cutter arms.

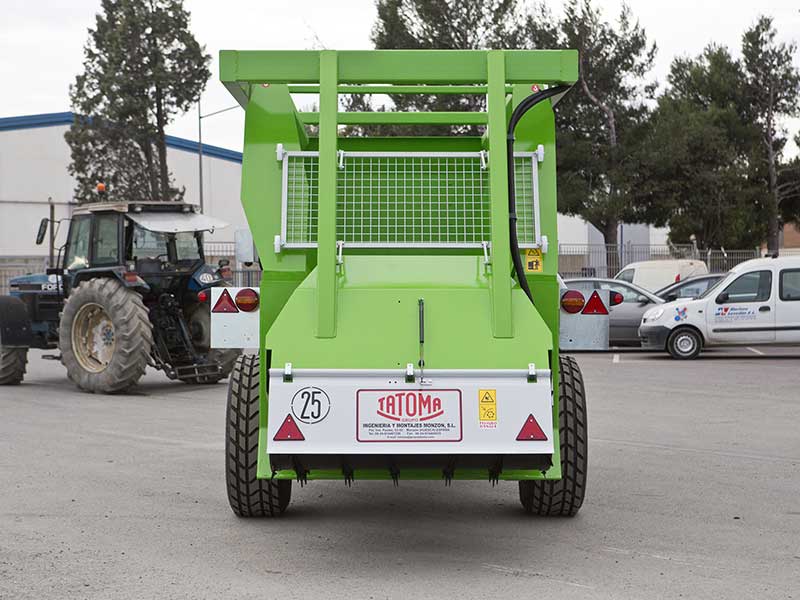

*  Hydraulic tailgate

*  Wire control with two separate blocks (manually operated beaters).

Tub:

*  Stainless steel  bottom

Discharge:

*  Change belt to opposite side

*  Belt flow regulator

*  Hydraulic elevation belt

*  Belt extension

*  Chain, Bottom discharge and crossbars in stainless steel

*  Double discharge

Brake:

*  Manual brake

*  Hydraulic brake

*  Manual and hydraulic  brake

*  Pneumatic and manual brake

Controls:

*  Solenoid valve control

*  Radio control (wireless)

Footstand:

*  Hydraulic footstand with hand pump

*  Mechanical footstand

Wheels:

*  Change wheels (different models)

Suspension:

*  Special chassis with springs

Others:

*  Bale kit

*  Battery kit

*  Lighting installation

*  CV PTO

*  Double input inverter for 7 10 and 13 mt (som)

*  Magnetic plate 750x220

*  Fenders

*  Change of curved to straight shaft

*  Add beater

*  Working lights
