Self-propelled Unifeed Mixer MBS-30

Self-propelled Unifeed Mixer Tatoma MBS-30
Gallery:
Enlarge image
Size of the text
Reduce text size Restore text size Increase text size

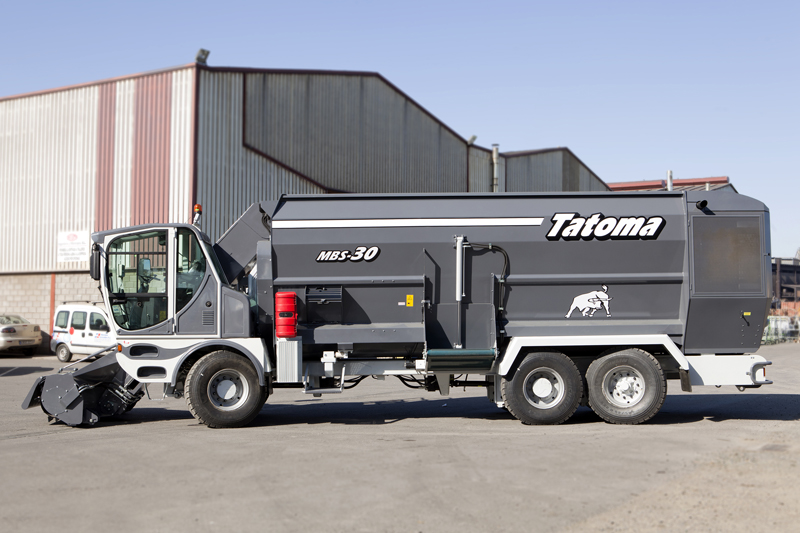

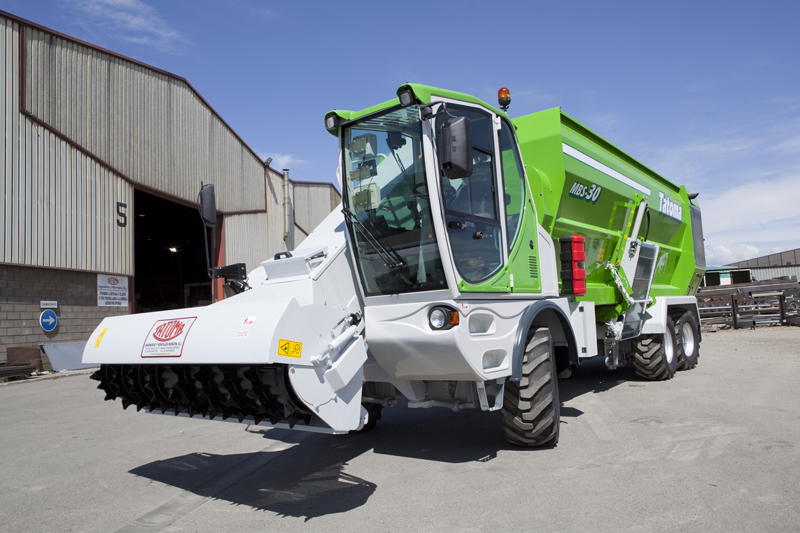

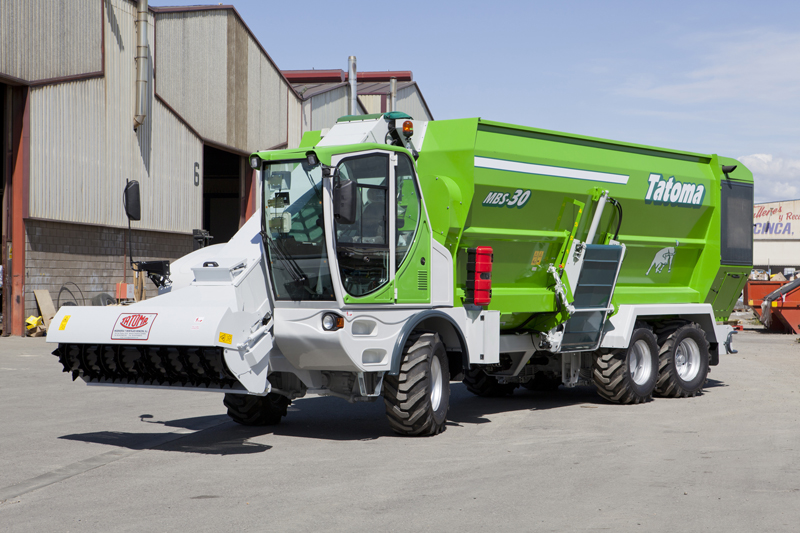

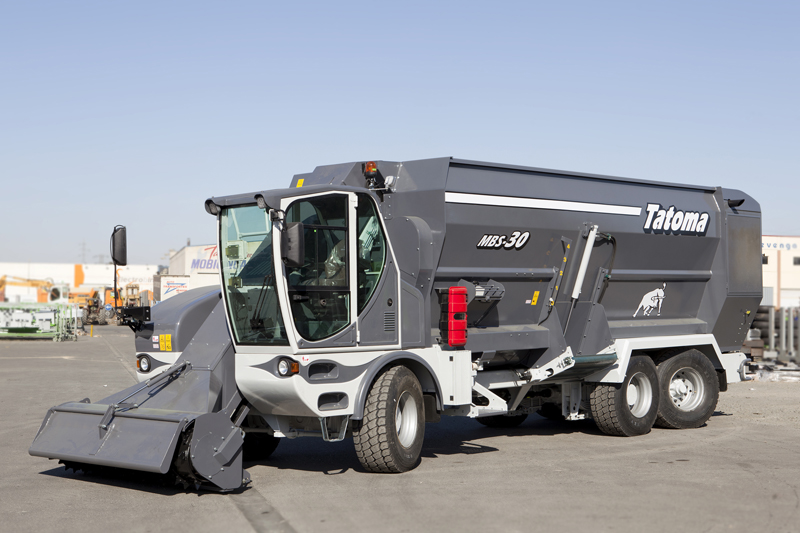

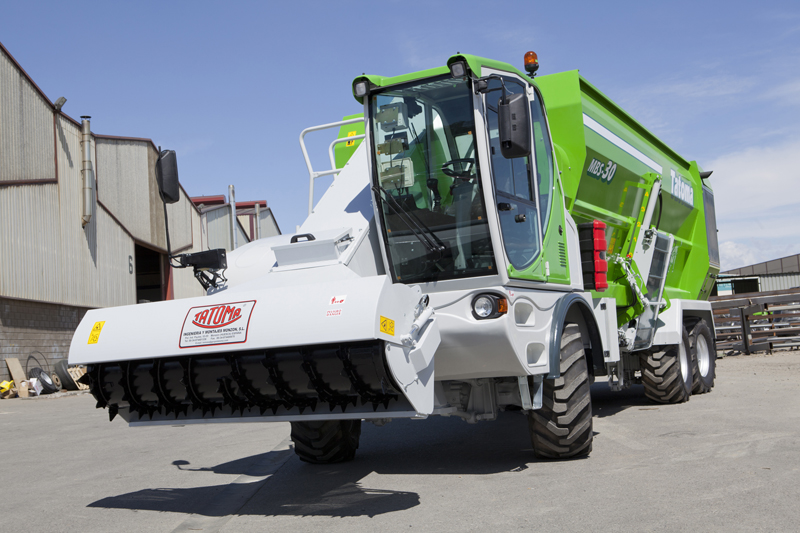

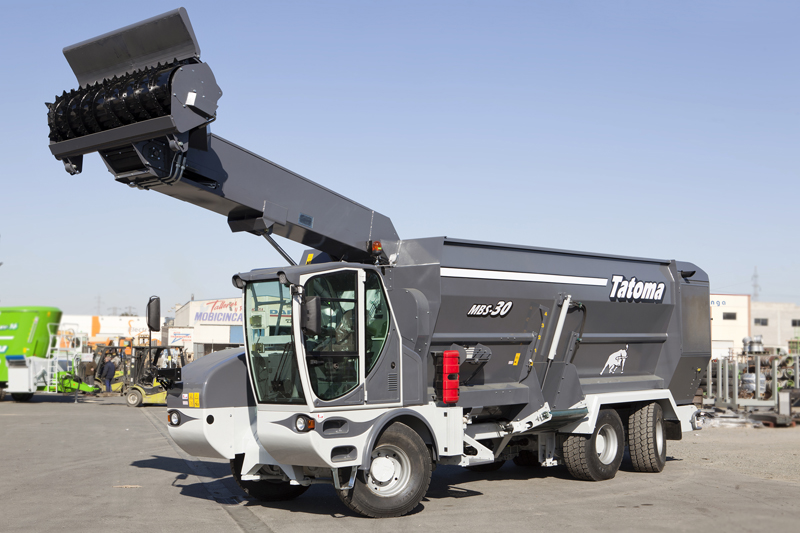

What follows is a presentation of the machine we have designed and manufactured;our 30 m3 capacity TATOMA self-propelled mixer MBS-30, is designed to collect, chop, mix and distribute to feedlot cattle.

A machine with this capacity is itself something of an innovation, given that they have only appeared recently on the market and are being developed by few manufacturers. Thanks to this type of machine the resources required for cattle feeding have been streamlined, while obtaining excellent results in the homogenization of the products used for cattle feed and savings in both time and fuel for the herd owner. These machines are specially designed to use on large farms or yards given their capacity to deliver around 200 rations in a single mix and distribution process.

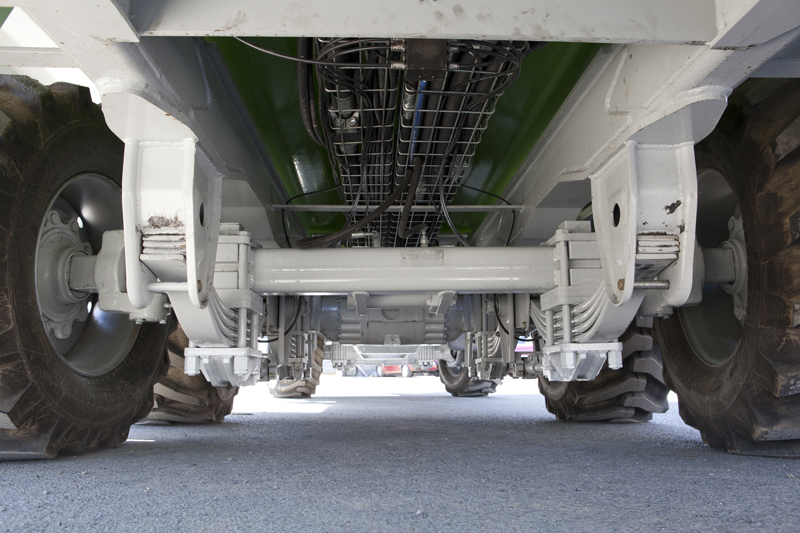

The machine is supported on three axles, the front axle with hydraulic suspension and the two rear ones with tandem suspension springs. The first and third axles also incorporate steering, providing excellent manoeuvrability, achieving a turning circle normally only possible on smaller capacity two-axle machines.





TECHNICAL SPECIFICATIONS of TATOMA SELF-PROPELLED MIXER MBS-30, with two horizontal augers and 30 m3 capacity.



MIXING CHAMBER
 30 m3 capacity for a maximum product weight of 12,000 kp. Stainless steel bottom.

MIXER

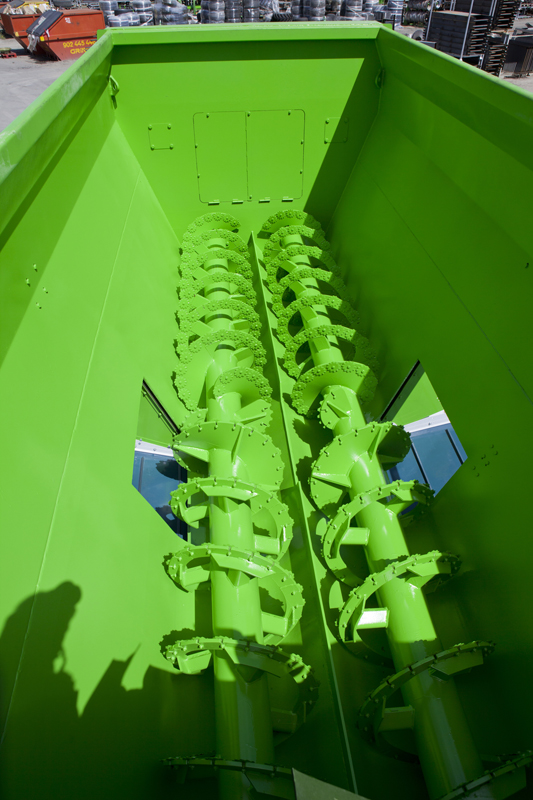

Two mixing augers at the bottom of the mixing chamber with an external auger diameter of 690 mm, 244.5 mm pipe diameter and 450 mm pitch.

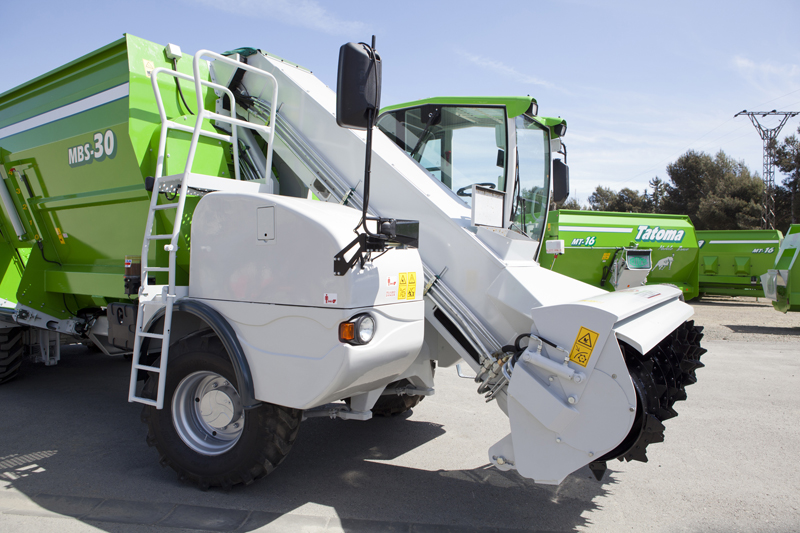

CUTTER AND LOADING BELT
Power 130 kW. Width 2200 mm. 600 mm wide rubber loading belt. Hydraulically operated cutter action protection.

UNLOADING BELT
Width 990 mm, PVC band, length depending on customer needs.

WEIGHSCALE
Programmable with modem output.

LOAD
Total weight, 22500 kp unladen and 34500 kp laden

CHASSIS
Built in hot-rolled structural steel, supporting all elements of the machine.

FUEL TANK
On the right side of the vehicle with a capacity of 250 litres

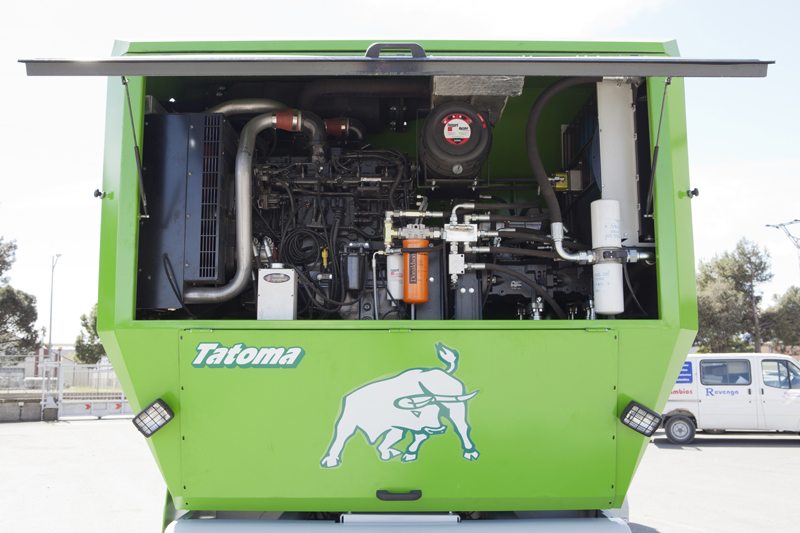

ENGINE
Diesel, Cummins QSL9 in-line 6-cylinder, Tier-3. Maximum power 242 kW @ 2100 rpm. Maximum torque, 1424 Nm @ 1500 rpm.

TRANSMISSION

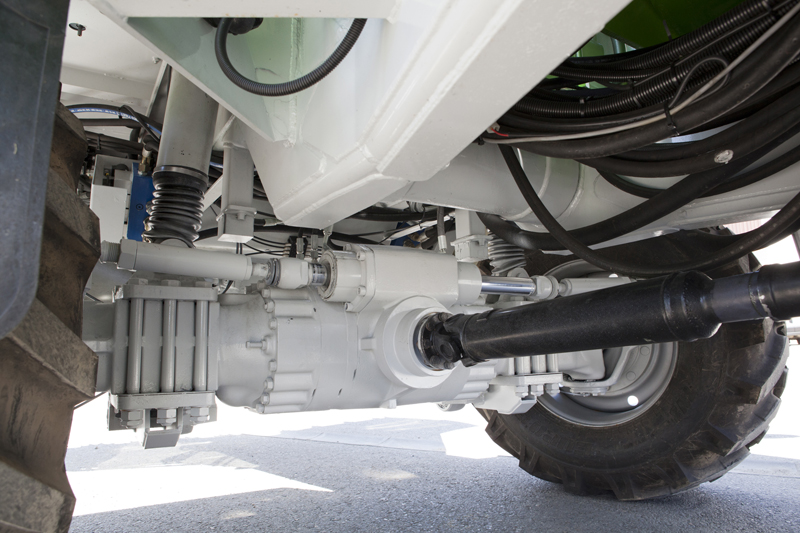

Hydrostatic closed circuit. Pump, 1 variable flow of 135 cm3 of maximum capacity and 2600 rpm at maximum load. Engines, 2 variable flow 58 cm3 minimum cylinder capacity and 165 cm3 maximum cylinder capacity, maximum 3100 rpm when laden and connected to the first and second axles respectively by a GWB cardan shaft. Maximum working pressure, 420 bar.

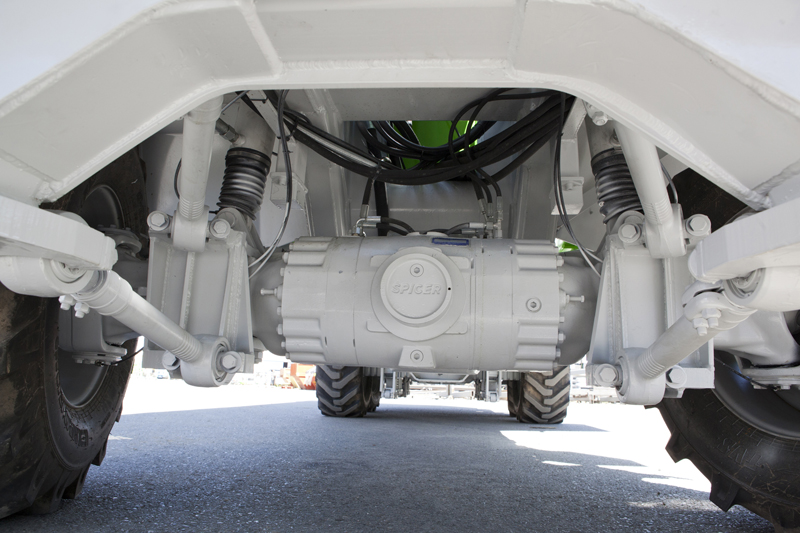

AXLES
Three, one front axle and two rear axles.
The first a 12t capacity steer drive DANA axle. 18.6 Ratio.
The second, a 13 t capacity drive DANA axle. 18.6 Ratio.
The third, an 11.5 t capacity drive ADR axle.

BRAKES
Service, hydraulic on first and second axles. The parking brake is a negative hydraulic brake on the first and second axles. Maximum pressure 40 bar.

SUSPENSION

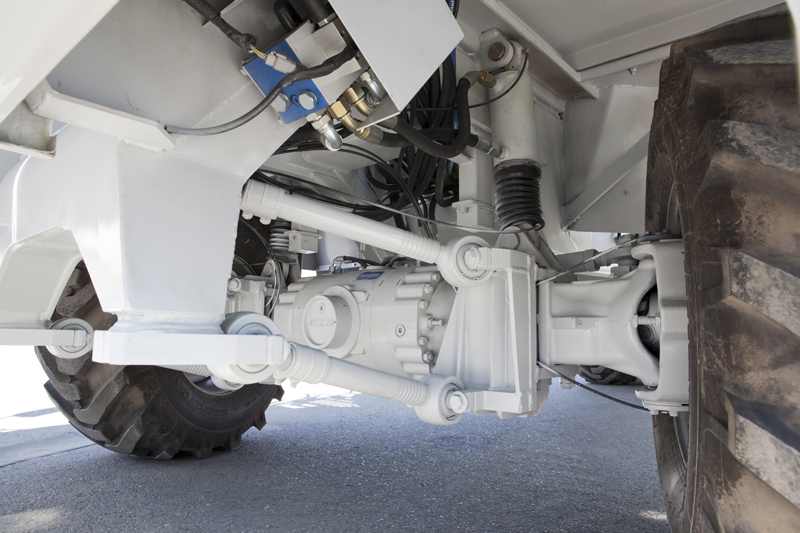

Parallel arm system on the front axle and hydraulic cylinders with ± 75 mm stroke  connected by crossing chambers together with nitrogen bladder type accumulators.

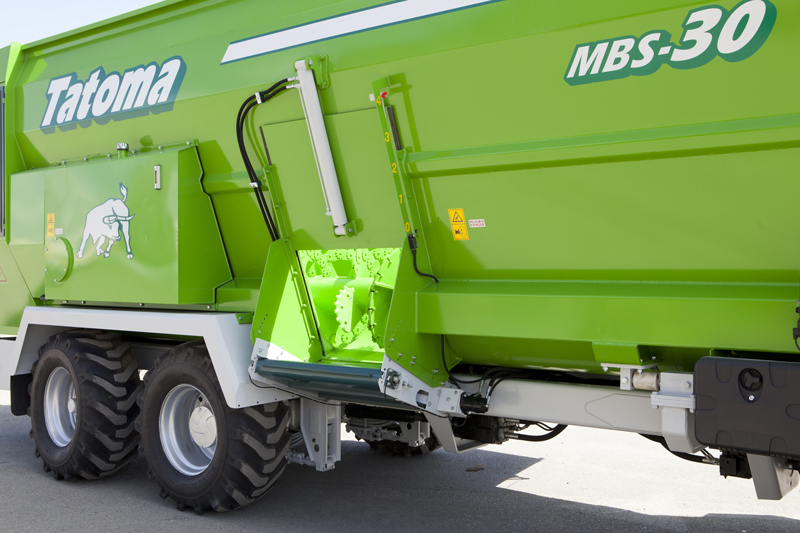

Leaf-spring tandem system on the rear axle with a total stroke of 80 mm.

STEERING
Orbitrol Hydraulics on the first axle and forced on the third axle. Maximum pressure 180 bar.

TYRES
Six tyres size 445/65R22.5

CABIN
One-seater. With suspension. Manufacturedanti-corrosion chemically treated steel. Extremely comfortable with excellent visibility. Fitted with safety glass, air conditioning, controls and indicators for machine handling. Seat with pneumatic suspension.

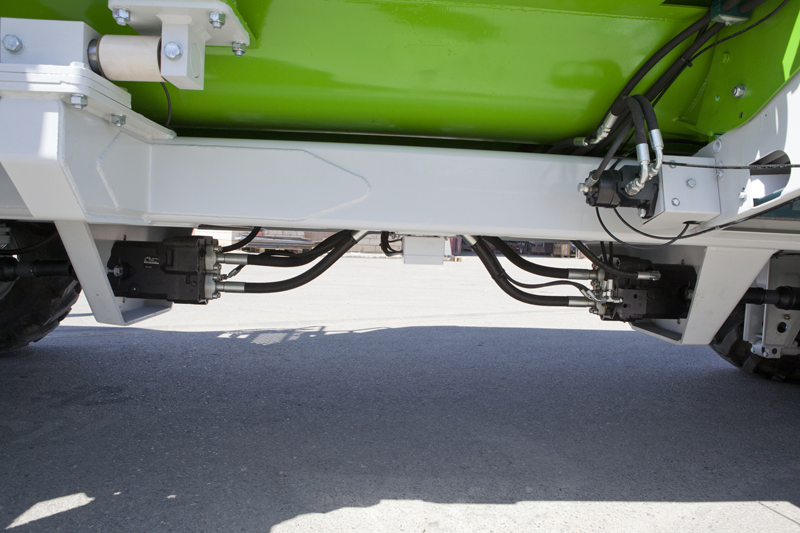

HYDRAULIC SYSTEM
Responsible for producing machine movements. Comprising the following elements:
Oil tank: 3 mm thick carbon sheet steel with internal reinforcements. Total capacity of 350 lt. and a filling capacity of 300 lt. located at the rear of the vehicle and incorporates, level gauge, return filters, filling and emptying caps and removable cap for cleaning.
Hydraulic pipes: rigid metal piping and flexible hose diameter and resistance in accordance with pressure and flow rate.

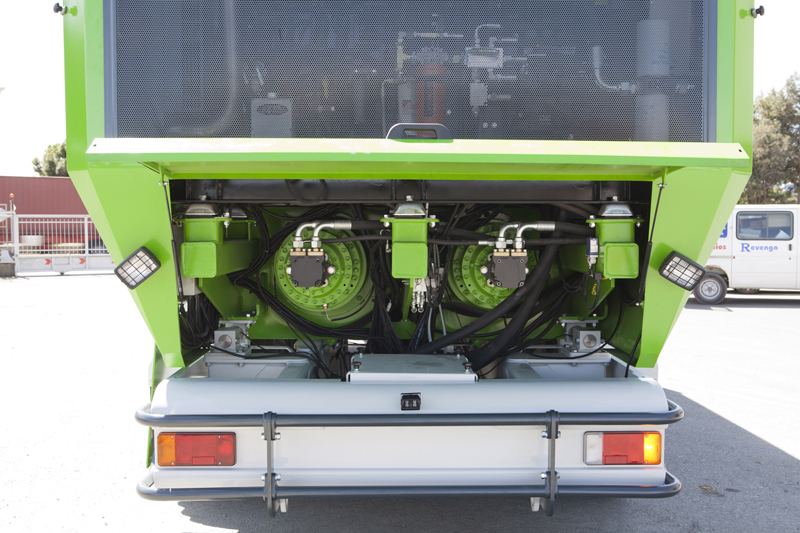

Mixer: Two variable flow pumps and two fixed displacement motors. Maximum working pressure, 420 bar.
Cutter: Two fixed displacement motors. Maximum working pressure, 300 bar.
Loading belt: Hydraulic motor 100 cm3
Unloading belt: Hydraulic motor 160 cm3
Drive Control: Solenoid valves NG6 and NG10 and 3-way proportional distribution valves.
Cooling System: Cooler with electric fan

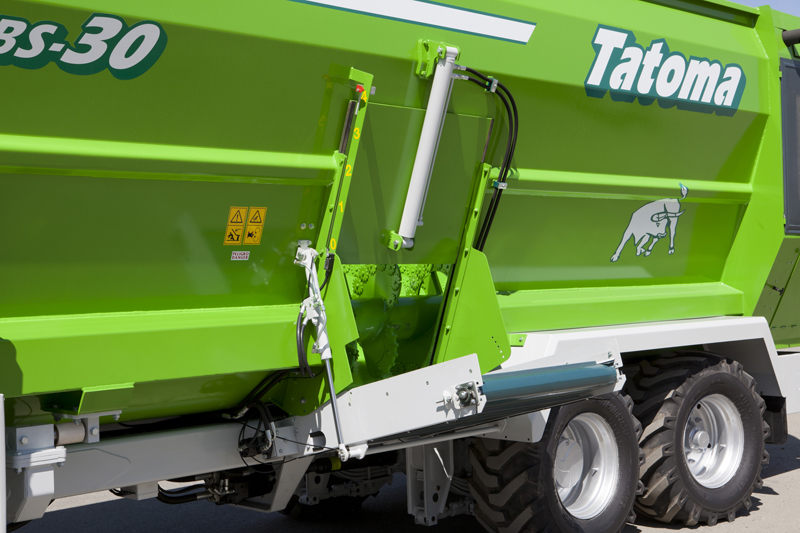

Cutter elevation: 1 single-action cylinder
Door operation: 1 double-action cylinder
Cutter protection 1 double-action cylinder
Movable mirror 1 double-action cylinder
Front suspension: 2 double-action cylinders
Steering: 1 double rod cylinder on first and third axle

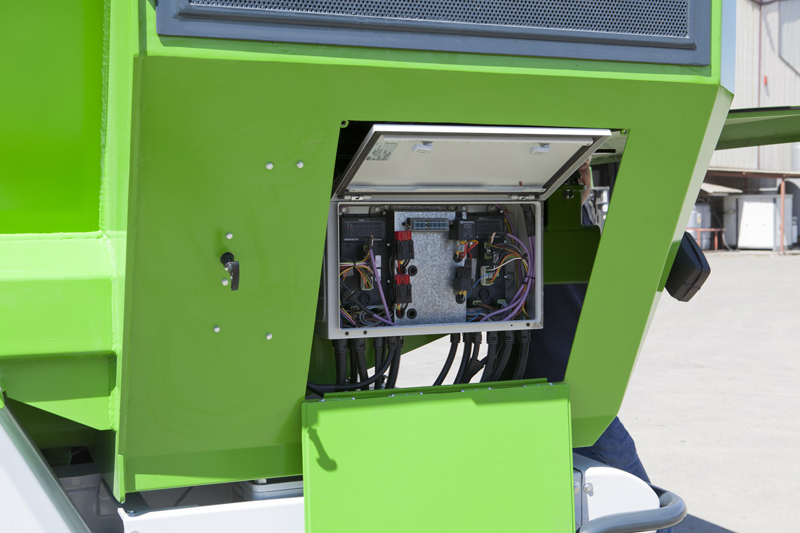

ELECTRICAL SYSTEM
The electrical system is designed and built to withstand harsh environments (dusty). All circuits are protected by thermal fuses. Special features:
Voltage: DC 24 V (negative to ground)
Batteries: 2 x 180 Ah
Generator: Alternator 70 A

CONTROL SYSTEM

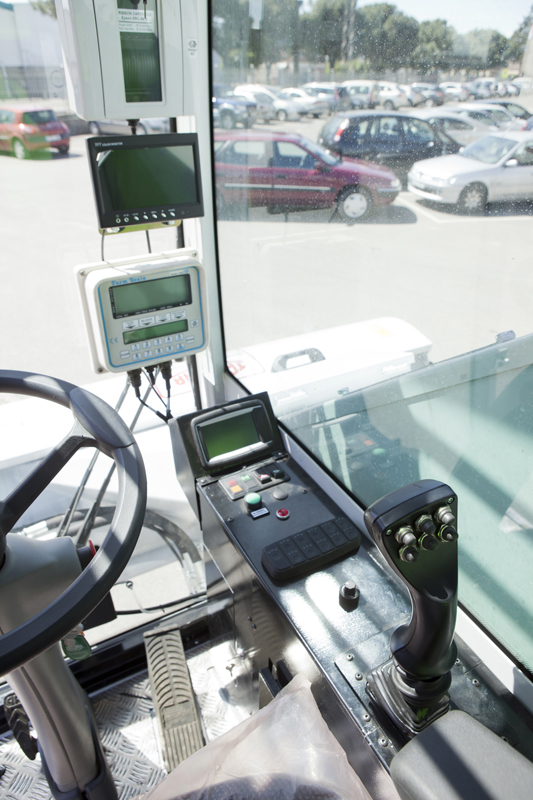

Side console and steering column in the cab with electric multifunction joystick, buttons and information screen to control and monitor all machine functions (engine, tanks and operations)

DIMENSIONS:
Cutter Height (centre) 5000 mm
Inner turning circle 5400 mm
Outer wheel turning circle 9420 mm
Wall-to-wall turning circle 10 715 mm
Minimum track 2100 mm

PERFORMANCE
Driving speed 10 kph laden, 30 kph unladen
% Maximum gradeability, 25% unladen, 10% laden
Feeding Capacity: 200 cattle per mix in 22 minutes over a distance of 1 km
Average consumption: 22.5 litres of fuel per hour


OPTIONAL EQUIPMENT:

- Stainless steel or HARDOX 400 anti-wear on the chamber bottom and the silage cutter
- Air conditioning
- Farm Link 4 Feed management system
- Hydraulic swing lateral unloading belt
- Ready to drive on the public highway (in accordance with the legislation in each country)
- LED Technology working lights
- Control camera on mixing chamber and rear of vehicle
