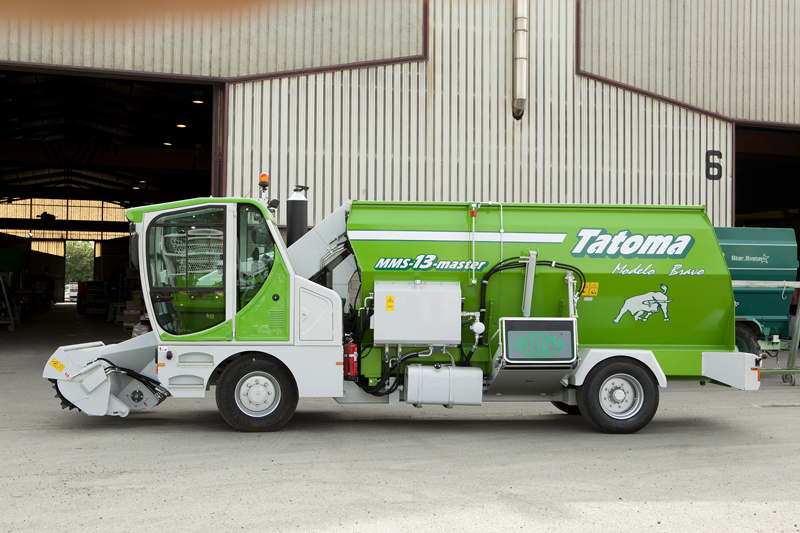

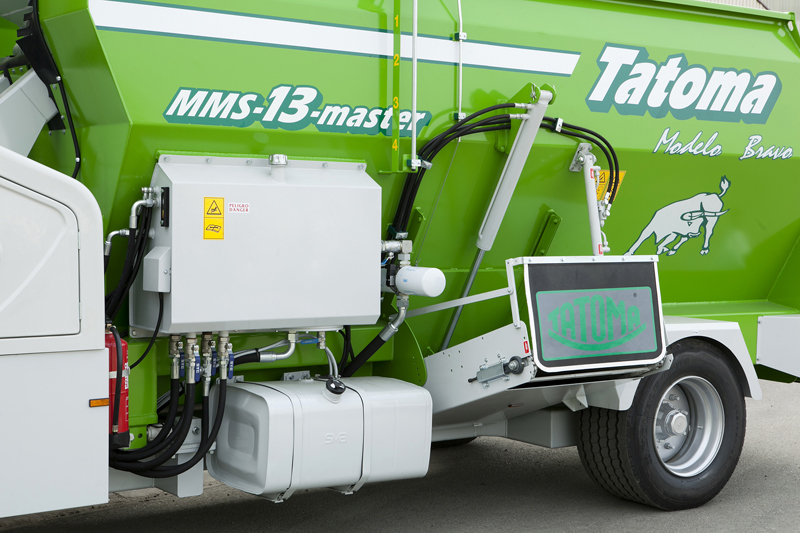

Single auger horizontal mixer Master MMS-10 and MMS-13

Gallery:
Size of the text



Horizontal mixer by one single auger
Diesel engine placed on the front side IVECO 175 CV
Hydraulic installation made on rubber pipes.
Step down gear box placed on front side
Front traction drive by wheel motors driven by high power radial pistons
Parking and emergency brake on the front axle
Movement speed 0-15 km/h
Steering axle able to turn up to 40º
Suspension by parabolic springs on the front axle
930 mm long elevator with hydraulic elevation
Variable flow pump to drive the movement serie high LINDE (500 bar)
Side and bottom plates made on high resistance material.
Auger made on high resistance material
Silo cutter 1.900 mm long, motor 75 HP
Reinforced elevator chain with Polyethylene crossbeam
Sit with pneumatic suspension
Programmable scale PERIN M-600 (15 rat.x 15 ing.)
Front tires ref. 305/70 R 19,5
Rear tires ref.445/65 R 22,5 traction
Electric control to drive the system which regulate  the silo cutter movement (descendent movement)
Pressure valve to control silo cutter working pressure.
Mixer working pressure indicator
Mixer step down gear oil temperature indicator.
Hydraulic oil temperature indicator
Hydraulic oil level indicator.
Damage light switch
Fire extinguisher on a thermo-plastic box.
Tools box.
Save- mud curtains
Accessories and documents for registration
Air conditioned
Head Light  (back, right and left side)




  MMS 10   MMS 13
Overall length (mm)                                 A    7.885 8.380
Maximum Silo cutter height (mm)         B   5.100 2.750
Overall width  (mm)                                  C   2.500 2.500
Distance between axles  (mm)              D  4.100 4.100
Overall Height (mm)                                 F 2.735 1.720
Overhanging rear (mm)                           G 1.495 1.970
Front axle width (mm)                              H 1.900 2.000
Back axle width (mm)     2.000 5.100
Volume (m3) 10 13
Tare (Kg) 10.450  10.640





Magnet fixed on unloading belt (125 m3/h)
Air conditioned
Electric heater on mirrors
Rearview mirrors electrically regulated
Rearview mirrors hydraulically folded
Headlight
Suspension by parabolic Springs on the rear axle
Increase length fraise (1.900 to 2.200 mm)
Silo cutter 1.900 mm long
TV camera
Double video camera  TFT colour 7’
Reversible fan 175 CV
Centralized greasing (automatic)
Centralized greasing
4-wheel traction
Two steering axles
Differential block
Add extra door with Belt 930 mm length with hydraulic elevation
Add extra door with Belt 930 mm length without hydraulic elevation
Stainless tub bottom
HARDOX tub bottom
